תכונות עיקריות
• Dedicated Ray Tracing Cores
• Dedicated Tensor Cores
• NVIDIA DLSS
• Game Ready and NVIDIA Studio Drivers
• NVIDIA® GeForce Experience™
• NVIDIA Broadcast
• NVIDIA G-SYNC®
• NVIDIA GPU Boost™
• GDDR6X Graphics Memory
• PCI Express® Gen 4
• Microsoft DirectX® 12 Ultimate
• Vulkan RT APIs, Vulkan 1.3, OpenGL 4.6
• HDCP 2.3
• DisplayPort 1.4a
• Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a
• Support Bracket Included
• One 16-pin to Four 8-pin Power Cable Included
-
מאיץ גרפי
NVIDIA® GeForce RTX® 4090
-
ממשק
PCI-Express 4.0 x16
-
ליבות CUDA
16384
-
מהירות מעבד
Clock Speed
2235 MHz
Boost Speed
2520 MHz
-
גודל זיכרון
24GB GDDR6X
-
מהירות זיכרון
21 Gbps
-
ממשק זיכרון
384-bit
-
רוחב פס זיכרון
1008 (GB/sec)
-
צריכת חשמל
450W
-
NVLink
Not Supported
-
יציאות

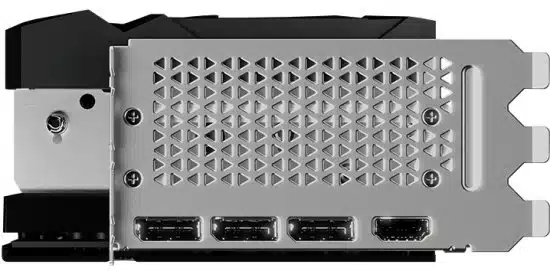

DisplayPort 1.4a (x3), HDMI 2.1
ריבוי מסכים
4
-
רזולוציה
7680×4320 @120Hz (Digital)
-
חיבורי חשמל
16-pin (One 16-pin to Four 8-pin)
-
מימדים
331.73×136.91×71.12 mm; 3.5 Slot
-
דרישות מערכת מינימליות
PCI Express-compliant motherboard with one 3.5-width x16 graphics slot
Four 8-pin supplementary power connectors
850 W or greater system power supply*
Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
Internet connection**
* Minimum is based on a PC configured with a Ryzen 9 5900X processor. Power requirements can be different depending on system configuration.
** Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.
